Minleon RGB Pixel G28 Mini Triklit - $POA

Minleon RGB Pixel G28 Mini Triklit - $POA

$0.01

Tax included. Shipping calculated at checkout.

Minleon Decorative RGB G28 Mini Triklit Pixel Lights are a high quality colourful bright 28mm 360 degree mini opaque ball allowing for amazing creative lighting possibilities. The Minleon digital RGB G28 Mini Triklit lights are a opaque G28 poly-carbonate bulb with a nice smooth diffused light with 2 bright digital RGB bulbs inside and are available in Black, Green or White string with custom spacing available.

These are perfect for use hanging in foyers, matrix walls, lighting canopies, light tunnels, chandeliers, signage and many other creative lighting applications

NOTE: Due to the custom nature of our lighting products then most products are order based - $POA Price on Application

What we do

Minleon Australia & New Zealand provide quality plug and play programmable digital decorative Vivid RGB Pixel lighting solutions to councils, event, designer, decorative, architectural, landscape, festive, signage, Christmas, electricians, installers and any other markets that require quality commercial grade decorative RGB Pixel lighting solutions ready to be installed.

We take out the complexity of designing, programming and setting up a digital programmable RGB pixel lighting project ready for installation in Australia or anywhere around the world. Call us now to discuss.

Minleon Australia & New Zealand is a premier decorative programmable RGB pixel lighting supplier that has been supplying high quality long lasting digital programmable decorative RGB pixel lighting products with a difference for over 10 years. We do not just supply high quality digital programmable RGB decorative pixel lights, but we also work with our customers to ensure they are supplied the best lighting solution to the level they feel comfortable with.

We can provide complete plug and play digital programmable RGB pixel lighting solutions tailored to you and/or your customers’ needs ready for installation with 24-hour phone support to ensure your lighting project/installation is a success

Call us on (+61) 0499551080 or email us at sales@minleon.com.au to discuss your lighting project needs and start taking advantage of the creative possibilities

Specifications

Product Name	G28 Mini Triklit
Ball Size	28mm
Voltage	12 Volts Direct Current (12vdc)
Power	0.34 Watts per RGB Light
Current	28mA per Light @ 12vdc
Processing	48bit (16bit per colour)
Refresh Rate	1KHZ Broadcast Quality
IP Rating	IP65
Working Temp	-20 to +60 Degree Celsius
Bulb Spacing	15cm or Custom spacing
Bulb Count per String	25 bulbs or custom bulb count
String Colour	Black, Dark Green or White
Lighting Controller	Minleon NDB, MC2, WEC controllers

G28 Mini Triklit Lights

Quick 1/2 Turn Weatherproof Connector

Minleon RGB Pixel G42 Triklit Lights - $POA

Minleon RGB Pixel G42 Triklit Lights - $POA

$0.01

Tax included. Shipping calculated at checkout.

Minleon Decorative RGB G42 Triklit Pixel Lights are a commercial quality, colourful bright 42mm 360 degree ball allowing for amazing creative lighting possibilities. The Minleon digital RGB G42 Triklit lights are a opaque G42 poly-carbonate bulb with a secondary internal diffuser creating a very smooth diffused light with 2 bright digital RGB bulbs inside and are available in Black, Green or White string with custom spacing available.

These are perfect for use hanging in foyers, matrix walls, lighting canopies, light tunnels, chandeliers, signage and many other creative lighting applications

NOTE: Due to the custom nature of our lighting products then most products are order based. Price on Application (POA)

What we do

Minleon Australia & New Zealand provide quality plug and play programmable digital decorative Vivid RGB Pixel lighting solutions to councils, event, designer, decorative, architectural, landscape, festive, signage, Christmas, electricians, installers and any other markets that require quality commercial grade decorative RGB Pixel lighting solutions ready to be installed.

We take out the complexity of designing, programming and setting up a digital programmable RGB pixel lighting project ready for installation in Australia or anywhere around the world. Call us now to discuss.

Minleon Australia & New Zealand is a premier decorative programmable RGB pixel lighting supplier that has been supplying high quality long lasting digital programmable decorative RGB pixel lighting products with a difference for over 10 years. We do not just supply high quality digital programmable RGB decorative pixel lights, but we also work with our customers to ensure they are supplied the best lighting solution to the level they feel comfortable with.

We can provide complete plug and play digital programmable RGB pixel lighting solutions tailored to you and/or your customers’ needs ready for installation with 24-hour phone support to ensure your lighting project/installation is a success

Call us on (+61) 0499551080 or email us at sales@minleon.com.au to discuss your lighting project needs and start taking advantage of the creative possibilities

Specifications

Product Name	G42 Triklit
Ball Size	42mm
Voltage	12 or 24 Volts Direct Current (12 or 24vdc)
Power	0.34 Watts per RGB Light (12vdc)
Current	28mA per Light @ 12vdc - 15mA per Light @ 24vdc
Processing	48bit RGB or RGBW
Refresh Rate	1KHZ Broadcast Quality
IP Rating	IP65
Working Temp	-20 to +60 Degree Celsius
Bulb Spacing	30cm or Custom spacing
Bulb Count per String	25 bulbs or custom bulb count
String Colour	Black, Dark Green or White
Lighting Controller	Minleon NDB, MC2, WEC controllers

G42 Triklit Lights

Quick 1/2 Turn Weatherproof Connector

Minleon RGB Pixel G50 Prism Triklit Lights - $POA

Minleon RGB Pixel G50 Prism Triklit Lights - $POA

$0.01

Tax included. Shipping calculated at checkout.

Minleon Decorative RGB Pixel G50 Prism Triklit Lights are a commercial quality colourful bright 50mm 360 degree faceted ball allowing for amazing creative lighting possibilities. The Minleon Decorative RGB Pixel G50 Prism Triklit Lights are a faceted G50 poly-carbonate bulb with a nice prismatic light with 4 bright digital RGB bulbs inside and are available in Black, Green or White string with custom spacing available.

These are perfect for use hanging in foyers, matrix walls, lighting canopies, light tunnels, chandeliers, signage and many other creative lighting applications

NOTE: Due to the custom nature of our lighting products then most products are order based - $POA Price on Application

What we do

Minleon Australia & New Zealand provide quality plug and play programmable digital decorative Vivid RGB Pixel lighting solutions to councils, event, designer, decorative, architectural, landscape, festive, signage, Christmas, electricians, installers and any other markets that require quality commercial grade decorative RGB Pixel lighting solutions ready to be installed.

We take out the complexity of designing, programming and setting up a digital programmable RGB pixel lighting project ready for installation in Australia or anywhere around the world. Call us now to discuss.

Minleon Australia & New Zealand is a premier decorative programmable RGB pixel lighting supplier that has been supplying high quality long lasting digital programmable decorative RGB pixel lighting products with a difference for over 10 years. We do not just supply high quality digital programmable RGB decorative pixel lights, but we also work with our customers to ensure they are supplied the best lighting solution to the level they feel comfortable with.

We can provide complete plug and play digital programmable RGB pixel lighting solutions tailored to you and/or your customers’ needs ready for installation with 24-hour phone support to ensure your lighting project/installation is a success

Call us on (+61) 0499551080 or email us at sales@minleon.com.au to discuss your lighting project needs and start taking advantage of the creative possibilities

Specifications

Product Name	RGB Pixel G50 Prism Triklit
Bulb Count	Custom
Bulb Spacing	Custom
Wire Colour	Black, Dark Green, White
Lens Type	Faceted (prism)
	OUTPUT
LED Type	SMD5050
LED Channels	3 - RGB or 4 - RGBW
Protocol	16 bit, 65536 dimming levels
LED Quantity	2
Chipset	RGB+ (3 wire)
	CONTROL
Individually Addressable	Yes
Control System	NDB+, Pro, WEC (ArtNet, E1.31, DDP)
Max Lights before Power Injection	Approx 125 Lights (12vdc) - Approx 225 Lights (24vdc)
Max Distance before Power Injection	Approx 40m(12v) - Approx 70m (24v)
	ELECTRICAL & SAFETY
Input Voltage	12 or 24 Volts DC
Current	0.028 Amps (12vdc)
Power	0.336 Watts (12vdc)
Wire	2 x 22 AWG, 3C, UV Protected
Certifications	(C)UL Listed, IP65, CE
	PHYSICAL
Size	50mm Diameter
Weight	Approx 40 grams
Material	Polycarbonate
Bulb Style	Faceted (Prism)
Connector type	Quick 1/2 turn twist lock
Operating Temperature	-20 Deg C to +50 Deg C

G50 Prism Triklit

Quick 1/2 Turn Weatherproof Connector

Minleon RGB Pixel Light Bars - $POA

$0.01

Tax included. Shipping calculated at checkout.

Minleon RGB specs drawing

The Minleon Light Bar is a bright digital RGB programmable colour changing light that is designed to be surface mounted to create colourful linear lighting effects for any area and comes in two sizes

The Light Bar perfect for facades/building, signage, decorative, internal lighting and many other applications and is made of high-quality materials allowing for a long trouble-free life.

What we do

Minleon Australia & New Zealand provide quality plug and play programmable digital decorative Vivid RGB Pixel lighting solutions to councils, event, designer, decorative, architectural, landscape, festive, signage, Christmas, electricians, installers and any other markets that require quality commercial grade decorative RGB Pixel lighting solutions ready to be installed.

We take out the complexity of designing, programming and setting up a digital programmable RGB pixel lighting project ready for installation in Australia or anywhere around the world. Call us now to discuss.

Minleon Australia & New Zealand is a premier decorative programmable RGB pixel lighting supplier that has been supplying high quality long lasting digital programmable decorative RGB pixel lighting products with a difference for over 10 years. We do not just supply high quality digital programmable RGB decorative pixel lights, but we also work with our customers to ensure they are supplied the best lighting solution to the level they feel comfortable with.

We can provide complete plug and play digital programmable RGB pixel lighting solutions tailored to you and/or your customers’ needs ready for installation with 24-hour phone support to ensure your lighting project/installation is a success

Call us on (+61) 0499551080 or email us at sales@minleon.com.au to discuss your lighting project needs and start taking advantage of the creative possibilities

Specifications

Name	Small Light Bar	Large Light Bar
Part Number	RGB+BARS-24V	RGB+BARL-24V
Dimension	1000(L)x24(W)x47(H)mm	1000(L)x33(W)x55(H)mm
LED Quantity	48 LEDs	48 LEDs
IC Count	8	8
LED Type	SMD 5050	SMD 5050
Colour	R-G-B	R-G-B
IC Chip	UCS 8903 48Bit 16bit/colour - 1KHZ Refresh Rate
Material	Aluminium/Polycarbonate – UV rated
Voltage	24V DC	24V DC
Power	4.8W per meter	4.8W per meter
Current	200mA per meter	200mA per meter
Wire Type	3x 18 AWG	3x 18 AWG
Wire Colour	White, Black	White, Black
Plug Type	Connectable with ½ turn quick connect plug	Connectable with ½ turn quick connect plug
Working Temp	-20 to +60 Deg C	-20 to +60 Deg C
Waterproof Level	IP67, outdoor use	IP67, outdoor use
Warranty	24 Months	24 Months

Minleon 24vdc RGB Light Bars

Quick 1/2 Turn Weatherproof Connector

Minleon RGB Pixel Light Spheres - $POA

$0.01

Tax included. Shipping calculated at checkout.

Minleon Decorative RGB Pixel Light Spheres are a high quality colourful diffused ball that are connectable to create synchronized programmable lighting installations. The Minleon digital RGB Sphere lights are an opaque poly-carbonate ball available in 250mm, 300mm, 350mm, 400mm and 500mm sizes that can be mixed together to create amazing lighting possibilities. Comes with a 30cm T-way drop and an optional ground stake for garden installation

These are perfect for hanging in foyers, hallways, gardens, trees, chandeliers, and many other creative lighting applications

NOTE: Due to the custom nature of our lighting products then most products are order based - $POA Price on Application

What we do

Minleon Australia & New Zealand provide quality plug and play programmable digital decorative Vivid RGB Pixel lighting solutions to councils, event, designer, decorative, architectural, landscape, festive, signage, Christmas, electricians, installers and any other markets that require quality commercial grade decorative RGB Pixel lighting solutions ready to be installed.

We take out the complexity of designing, programming and setting up a digital programmable RGB pixel lighting project ready for installation in Australia or anywhere around the world. Call us now to discuss.

Minleon Australia & New Zealand is a premier decorative programmable RGB pixel lighting supplier that has been supplying high quality long lasting digital programmable decorative RGB pixel lighting products with a difference for over 10 years. We do not just supply high quality digital programmable RGB decorative pixel lights, but we also work with our customers to ensure they are supplied the best lighting solution to the level they feel comfortable with.

We can provide complete plug and play digital programmable RGB pixel lighting solutions tailored to you and/or your customers’ needs ready for installation with 24-hour phone support to ensure your lighting project/installation is a success

Call us on (+61) 0499551080 or email us at sales@minleon.com.au to discuss your lighting project needs and start taking advantage of the creative possibilities

Specifications

Product Name	RGB Spheres
Ball Size	100mm, 150mm, 250mm, 300mm, 350mm, 400mm and 500mm
Voltage	12vdc or 24vdc
Power	100mm - 1.34 watts, 150mm- 1.34 watts, 250mm - 1.8 watts, 300mm - 2.5 watts, 350mm - 2,8 watts, 400mm - 3.6 watts, 500mm - 3.6 watts
Current	@12vdc 100mm - 110mA, 150mm - 110mA, 250mm - 150mA, 300mm - 210mA, 350mm - 235mA, 400mm - 300mA, 500mm - 300mA @ 24vdc 100mm - 55mA, 150mm - 55mA, 250mm - 75mA, 300mm - 105mA, 350mm - 117mA, 400mm - 150mA, 500mm - 150mA
Chipset	UCS2903
Processing	48bit (16bit per colour)
Refresh Rate	1KHZ Broadcast Quality
IP Rating	IP65
Working Temp	-20 to +60 Degree Celsius
Bulb Spacing	30cm Tway included
Bulb Count per String	Per Sphere
String Colour	Black, Dark Green or White
Lighting Controller	Minleon NDB, MC2, WEC controllers or any 3rd party supporting controller

RGB Sphere Lights

Includes optional ground stake

Quick 1/2 Turn Weatherproof Connector

Minleon RGB Pixel Mini Splash Light - $POA

$0.01

Tax included. Shipping calculated at checkout.

Minleon Decorative RGB Pixel Mini Splash Light are a high quality colourful bright mini flood light that can be connected together and with other Minleon lights to create colourful scenes. The Minleon Splash lights are a 12vdc 10 watt (upgraded from 5 watt) outdoor and indoor flood light that can fill areas with colourful light.

These are perfect for gardens, wall lighting, highlighting objects and many other creative lighting applications

NOTE: Due to the custom nature of our lighting products then most products are order based - $POA Price on Application

What we do

Minleon Australia & New Zealand provide quality plug and play programmable digital decorative Vivid RGB Pixel lighting solutions to councils, event, designer, decorative, architectural, landscape, festive, signage, Christmas, electricians, installers and any other markets that require quality commercial grade decorative RGB Pixel lighting solutions ready to be installed.

We take out the complexity of designing, programming and setting up a digital programmable RGB pixel lighting project ready for installation in Australia or anywhere around the world. Call us now to discuss.

Minleon Australia & New Zealand is a premier decorative programmable RGB pixel lighting supplier that has been supplying high quality long lasting digital programmable decorative RGB pixel lighting products with a difference for over 10 years. We do not just supply high quality digital programmable RGB decorative pixel lights, but we also work with our customers to ensure they are supplied the best lighting solution to the level they feel comfortable with.

We can provide complete plug and play digital programmable RGB pixel lighting solutions tailored to you and/or your customers’ needs ready for installation with 24-hour phone support to ensure your lighting project/installation is a success

Call us on (+61) 0499551080 or email us at sales@minleon.com.au to discuss your lighting project needs and start taking advantage of the creative possibilities

Specifications

Product Name	RGB Pixel Mini Splash Light
Wire Colour	Black
Beam Angle	120 Degrees
	OUTPUT
LED Type	COB10WRGB
LED Channels	3 - RGB
Protocol	16 bit, 65536 dimming levels
LED Quantity	1
Chipset	RGB+ (3 wire)
	CONTROL
Individually Addressable	Yes
Control System	NDB+, Pro, WEC (ArtNet, E1.31, DDP)
Max Lights before Power Injection	Approx 8
Max Distance before Power Injection	Approx 30m
	ELECTRICAL & SAFETY
Input Voltage	12 Volts DC
Current	0.84 Amps (12vdc)
Power	10 Watts (12vdc)
Wire	3 x 18 AWG, 3C, UV Protected
Certifications	(C)UL Listed, IP65, CE
	PHYSICAL
Size	120 x 130 x 40mm
Weight	Approx 250 grams
Material	Aluminium/powder coated/glass cover
Bulb Style	Includes ground stake
Connector type	Quick 1/2 turn twist lock
Operating Temperature	-20 Deg C to +50 Deg C

RGB Pixel Splash Light

Quick 1/2 Turn Weatherproof Connector

Minleon RGB Pixel Pebble Lights - $POA

$0.01

Tax included. Shipping calculated at checkout.

Minleon Decorative RGB Pebble Pixel Lights are a high quality colourful bright double sided light with many uses and applications. The Minleon digital RGB Pebble lights are durable and versatile with unlimited uses and possibilities and are available in clear or frosted with black, green, white or clear string with custom spacing available. There is the option of RGB and RGBW and different chipsets. A perfect addition to the great range of Minleon Lights

These are perfect for outlines, light tunnels, trees, bushes, signage, frames and many other lighting applications

NOTE: Due to the custom nature of our lighting products then most products are order based - $POA Price on Application

What we do

Minleon Australia & New Zealand provide quality plug and play programmable digital decorative Vivid RGB Pixel lighting solutions to councils, event, designer, decorative, architectural, landscape, festive, signage, Christmas, electricians, installers and any other markets that require quality commercial grade decorative RGB Pixel lighting solutions ready to be installed.

We take out the complexity of designing, programming and setting up a digital programmable RGB pixel lighting project ready for installation in Australia or anywhere around the world. Call us now to discuss.

Minleon Australia & New Zealand is a premier decorative programmable RGB pixel lighting supplier that has been supplying high quality long lasting digital programmable decorative RGB pixel lighting products with a difference for over 10 years. We do not just supply high quality digital programmable RGB decorative pixel lights, but we also work with our customers to ensure they are supplied the best lighting solution to the level they feel comfortable with.

We can provide complete plug and play digital programmable RGB pixel lighting solutions tailored to you and/or your customers’ needs ready for installation with 24-hour phone support to ensure your lighting project/installation is a success

Call us on (+61) 0499551080 or email us at sales@minleon.com.au to discuss your lighting project needs and start taking advantage of the creative possibilities

Specifications

Product Name	Pebble Light
LED Type	RGB or RGBW
Type	Clear or frosted
Voltage	12VDC or 24VDC
Power	0.34 Watts per RGB Light
Current	28mA @ 12vdc or 14mA @ 24vdc
Chipset	UCS2903 RGB, UCS2904 RGBW, WS2812 RGB Budget UCS8904 RGBW 4 wire Redundant data line 24vdc
Processing	48bit (16bit per colour) or 8 bit WS2812 RGB
Refresh Rate	1KHZ Broadcast Quality
IP Rating	IP67
Working Temp	-20 to +60 Degree Celsius
Bulb Spacing	25cm or Custom spacing
Bulb Count per String	25 bulbs or custom bulb count
String Colour	Clear, Black, Dark Green or White
Lighting Controller	Minleon NDB, MC2, WEC controllers and supported controllers

Pebble Lights

Clear Pebble Lights

Frosted Pebble Lights

Quick 1/2 Turn Weatherproof Connector

Minleon RGB Pixel Splash Tile Light - $POA

Minleon RGB Pixel Splash Tile Light - $POA

$0.01

Tax included. Shipping calculated at checkout.

Minleon Decorative RGB Pixel Splash Light are a high quality colourful bright mini flood light that can be connected together and with other Minleon lights to create colourful scenes. The Minleon Splash lights are a 20 watt outdoor and indoor flood light that can fill areas with colourful light.

These are perfect for gardens, wall lighting, highlighting objects and many other creative lighting applications. 10, 30 and 50 watt options also available

NOTE: Due to the custom nature of our lighting products then most products are order based - $POA Price on Application

What we do

Minleon Australia & New Zealand provide quality plug and play programmable digital decorative Vivid RGB Pixel lighting solutions to councils, event, designer, decorative, architectural, landscape, festive, signage, Christmas, electricians, installers and any other markets that require quality commercial grade decorative RGB Pixel lighting solutions ready to be installed.

We take out the complexity of designing, programming and setting up a digital programmable RGB pixel lighting project ready for installation in Australia or anywhere around the world. Call us now to discuss.

Minleon Australia & New Zealand is a premier decorative programmable RGB pixel lighting supplier that has been supplying high quality long lasting digital programmable decorative RGB pixel lighting products with a difference for over 10 years. We do not just supply high quality digital programmable RGB decorative pixel lights, but we also work with our customers to ensure they are supplied the best lighting solution to the level they feel comfortable with.

We can provide complete plug and play digital programmable RGB pixel lighting solutions tailored to you and/or your customers’ needs ready for installation with 24-hour phone support to ensure your lighting project/installation is a success

Call us on (+61) 0499551080 or email us at sales@minleon.com.au to discuss your lighting project needs and start taking advantage of the creative possibilities

Specifications

Product Name	RGB Pixel Splash Light
Wire Colour	Black
Beam Angle	120 Degrees
	OUTPUT
LED Type	COB20WRGB
LED Channels	3 - RGB
Protocol	8 bit or 16 bit dimming
LED Quantity	1
Chipset	WS2812 (8bit) or UCS2803 (16bit)
	CONTROL
Individually Addressable	Yes
Control System	NDB+, Pro, WEC (ArtNet, E1.31, DDP)
Max Lights before Power Injection	Approx 3 to 4
Max Distance before Power Injection	Approx 15m
	ELECTRICAL & SAFETY
Input Voltage	24 Volts DC
Current	0.83 Amps (24vdc)
Power	20 Watts (24vdc) (10, 30 and 50 watt options available)
Wire	3 x 18 AWG, 3C, UV Protected
Certifications	(C)UL Listed, IP65, CE
	PHYSICAL
Size	200 x 150 x 40mm
Weight	Approx 300 grams
Material	Aluminium/powder coated/glass cover
Bulb Style	Includes ground stake
Connector type	Quick 1/2 turn twist lock
Operating Temperature	-20 Deg C to +50 Deg C

RGB Pixel Splash Light

Quick 1/2 Turn Weatherproof Connector

Minleon RGB Pixel Strip Light - $POA

$0.01

Tax included. Shipping calculated at checkout.

Minleon Decorative RGB Pixel Strip Light is a high quality colourful bright flat light strip that allows for amazing creative lighting possibilities. There are 2 options with 12vdc strip light which has 14 controllable sections and 28 lights per meter or the 24vdc high efficiency/output option which has 10 controllable sections per meter with 70 LEDs per metre to allow for colourful and creative lighting possibilities.

These are perfect for lighting outlines, gutters/eves, signage, stairways, roof lighting and many other creative lighting applications

NOTE: Due to the custom nature of our lighting products then most products are order based - $POA Price on Application

What we do

Minleon Australia & New Zealand provide quality plug and play programmable digital decorative Vivid RGB Pixel lighting solutions to councils, event, designer, decorative, architectural, landscape, festive, signage, Christmas, electricians, installers and any other markets that require quality commercial grade decorative RGB Pixel lighting solutions ready to be installed.

We take out the complexity of designing, programming and setting up a digital programmable RGB pixel lighting project ready for installation in Australia or anywhere around the world. Call us now to discuss.

Minleon Australia & New Zealand is a premier decorative programmable RGB pixel lighting supplier that has been supplying high quality long lasting digital programmable decorative RGB pixel lighting products with a difference for over 10 years. We do not just supply high quality digital programmable RGB decorative pixel lights, but we also work with our customers to ensure they are supplied the best lighting solution to the level they feel comfortable with.

We can provide complete plug and play digital programmable RGB pixel lighting solutions tailored to you and/or your customers’ needs ready for installation with 24-hour phone support to ensure your lighting project/installation is a success

Call us on (+61) 0499551080 or email us at sales@minleon.com.au to discuss your lighting project needs and start taking advantage of the creative possibilities

Specifications

Product Name	Pixel Strip Light
Roll Size	5 metres (12vdc) 10m (24vdc) - Custom
LED Type	SMD5050 RGB or RGBW
LED Count	12vdc RGB - 28 LEDs/meter - 14 sections/metre 24vdc RGBW - 70 LED/meter - 10 sections/metre (high output/efficiency)
Voltage	12vdc or 24vdc
Power	12vdc - 5 Watts per metre - 25 watts per roll 24vdc - 3.6 Watts per metre - 18 watts per roll (high output/efficiency)
Current	0.4amps per metre @ 12vdc - 2 amps per roll 0.15amps per metre @ 24vdc - 0.75 amps per roll
Chipset	UCS2903 (RGB 12vdc) UCS2904 (RGBW 24vdc)
Processing	48bit (16bit per colour)
Refresh Rate	1KHZ Broadcast Quality
Max Length	max length without power injection - 12vdc 5m - 24vdc 10m
IP Rating	IP67
Working Temp	-20 to +60 Degree Celsius
String Colour	Black, Dark Green or White
Lighting Controller	Minleon NDB, MC2, WEC controllers or any supporting controller

Digital Strip Light

Quick 1/2 Turn Weatherproof Connector

Minleon RGB Pixel T8 Light Tubes - $POA

$0.01

Tax included. Shipping calculated at checkout.

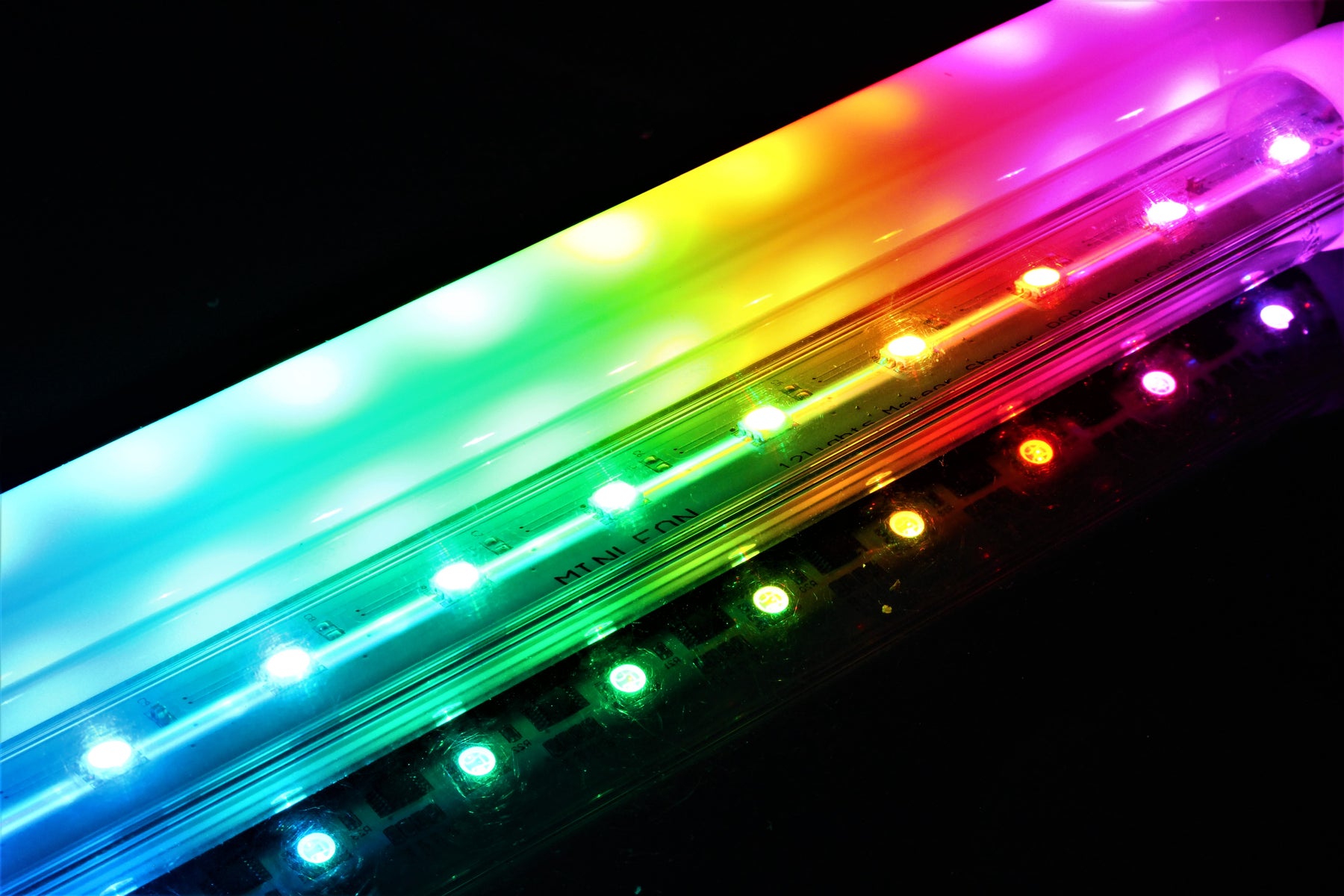

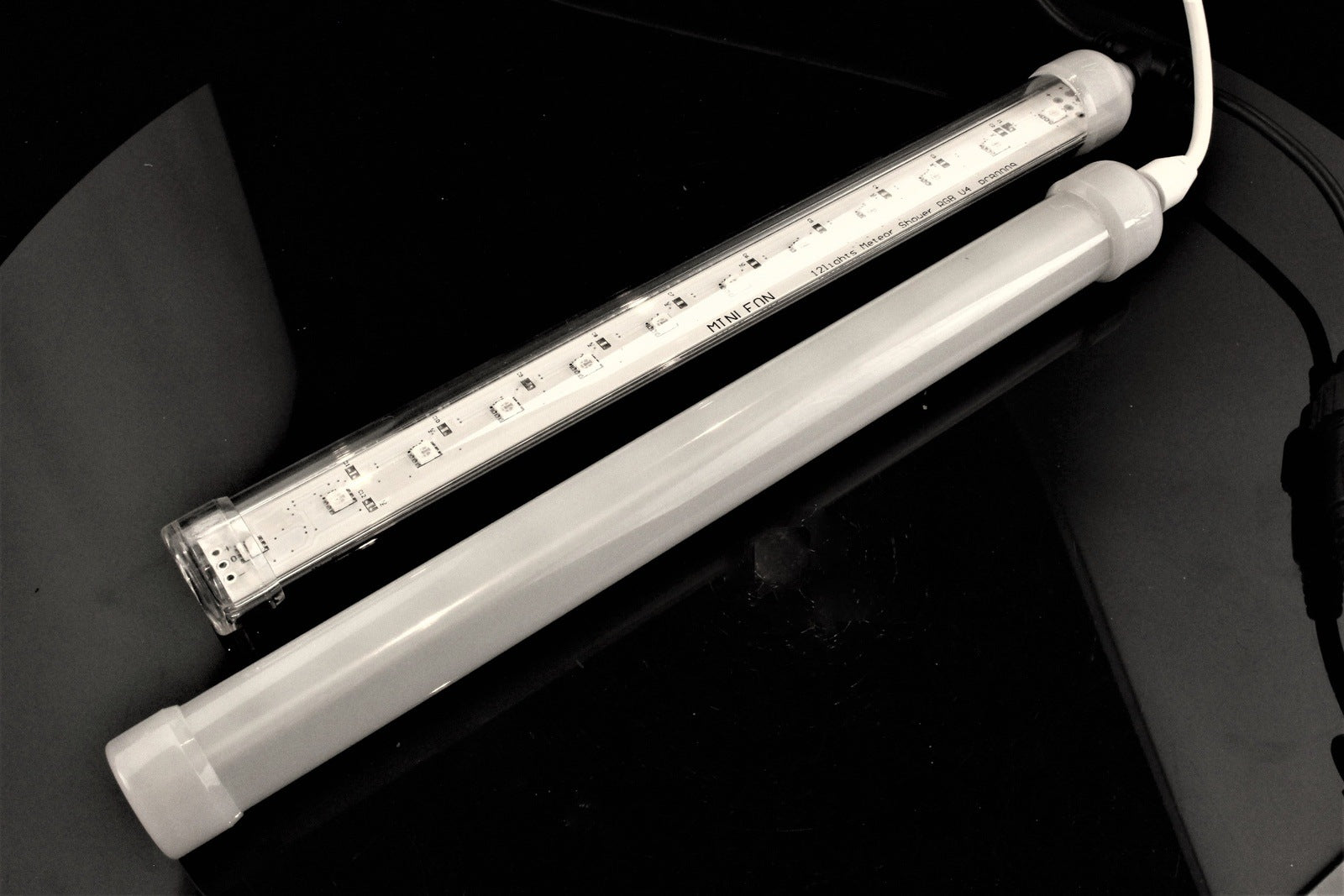

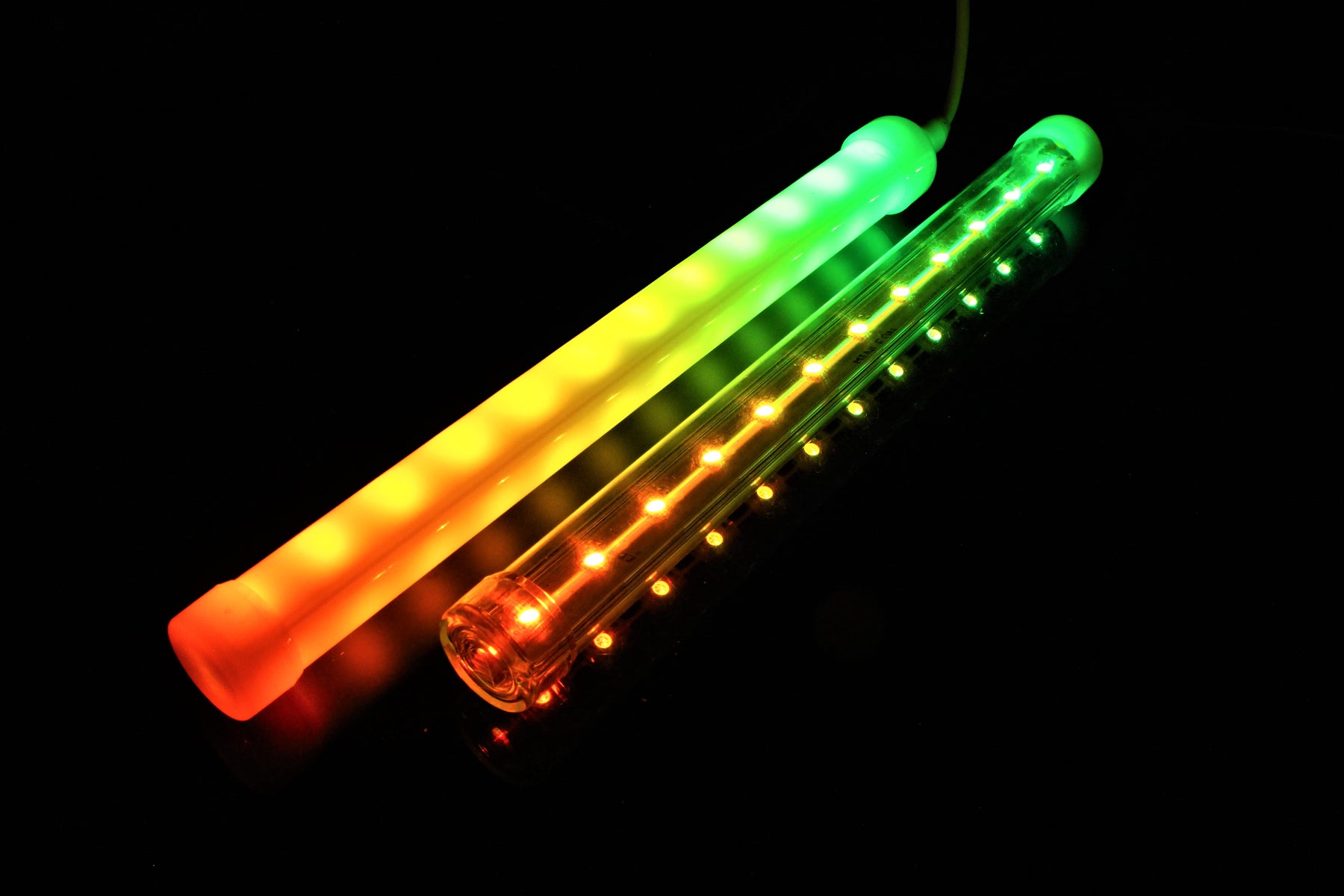

Minleon Decorative RGB T8 Pixel Light Tube are a high quality colourful bright T8 light tube with RGB LEDs on both sides and are available in 30cm, 60cm, 90cm, 120cm, 150cm and 180cm lengths both in clear and frosted tubes.

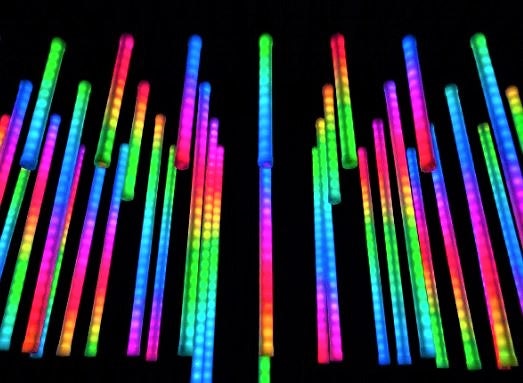

These are perfect for hanging in foyers, lighting canopies, trees, party lighting, chandeliers, and many other creative lighting applications

NOTE: Due to the custom nature of our lighting products then most products are order based - $POA Price on Application

What we do

Minleon Australia & New Zealand provide quality plug and play programmable digital decorative Vivid RGB Pixel lighting solutions to councils, event, designer, decorative, architectural, landscape, festive, signage, Christmas, electricians, installers and any other markets that require quality commercial grade decorative RGB Pixel lighting solutions ready to be installed.

We take out the complexity of designing, programming and setting up a digital programmable RGB pixel lighting project ready for installation in Australia or anywhere around the world. Call us now to discuss.

Minleon Australia & New Zealand is a premier decorative programmable RGB pixel lighting supplier that has been supplying high quality long lasting digital programmable decorative RGB pixel lighting products with a difference for over 10 years. We do not just supply high quality digital programmable RGB decorative pixel lights, but we also work with our customers to ensure they are supplied the best lighting solution to the level they feel comfortable with.

We can provide complete plug and play digital programmable RGB pixel lighting solutions tailored to you and/or your customers’ needs ready for installation with 24-hour phone support to ensure your lighting project/installation is a success

Call us on (+61) 0499551080 or email us at sales@minleon.com.au to discuss your lighting project needs and start taking advantage of the creative possibilities

Specifications

Product Name	T8 Tube
Tube Length	30cm (1ft), 60cm (2ft), 90cm (3ft), 120cm (4ft), 150cm (5ft), 180cm (6ft)
Lights per Tube	30cm - 24 (12IC), 60cm - 50 (25IC), 90cm - 74 (37IC), 120cm - 100 (50IC), 150cm - 124 (64IC), 180cm - 150 (75IC)
Voltage	12vdc or 24vdc
Power	30cm - 5 watts, 60cm - 10.8 watts, 90cm - 15.6 watts, 120cm - 21.6 watts, 150cm - 26.4 watts, 180cm - 31.2 watts
Current	@12vdc - 30cm - 0.42amps, 60cm - 0.9amps, 90cm - 1.3amps, 120cm - 1.8amps, 150cm - 2.2amps, 180cm - 2.6amps per Tube @24vdc - 30cm - 0.21amps, 60cm - 0.45amps, 90cm - 0.65amps, 120cm - 0.9amps, 150cm - 1.1amps, 180cm - 1.3amps per Tube
Processing	48bit (16bit per colour)
Refresh Rate	1KHZ Broadcast Quality
IP Rating	IP65
Working Temp	-20 to +60 Degree Celsius
Tube Spacing	Use with Minleon Smart-T or standard T-way or any supported controller
String Colour	Black, Dark Green or White
Lighting Controller	Minleon NDB, MC2, WEC controllers or any supporting controller

T8 Tube Lights

Quick 1/2 Turn Weatherproof Connector

Minleon RGB Round Neon Pixel Tube - $POA

Minleon RGB Round Neon Pixel Tube - $POA

$0.01

Tax included. Shipping calculated at checkout.

The Minleon RGB Round Neon Pixel Tube is a Commercial Quality bright digital RGB colour changing programmable neon tube that is designed to outline and create smooth looking colour outlines. The RGB Neon Pixel Tube comes in 25mm diameter and has a 360 degrees light coverage. Uses 4 wire to allow data signal redundancy for higher reliability

The Minleon RGB Round Neon Pixel Tube is perfect for outlines and dressing, applications where you want to have control of the lighting. Made of high-quality materials allowing for a long trouble-free life.

NOTE: Due to the custom nature of our lighting products then most products are order based. Price on application (POA)

What we do

Minleon Australia & New Zealand provide quality plug and play programmable digital decorative Vivid RGB Pixel lighting solutions to councils, event, designer, decorative, architectural, landscape, festive, signage, Christmas, electricians, installers and any other markets that require quality commercial grade decorative RGB Pixel lighting solutions ready to be installed.

We take out the complexity of designing, programming and setting up a digital programmable RGB pixel lighting project ready for installation in Australia or anywhere around the world. Call us now to discuss.

Minleon Australia & New Zealand is a premier decorative programmable RGB pixel lighting supplier that has been supplying high quality long lasting digital programmable decorative RGB pixel lighting products with a difference for over 10 years. We do not just supply high quality digital programmable RGB decorative pixel lights, but we also work with our customers to ensure they are supplied the best lighting solution to the level they feel comfortable with.

We can provide complete plug and play digital programmable RGB pixel lighting solutions tailored to you and/or your customers’ needs ready for installation with 24-hour phone support to ensure your lighting project/installation is a success

Call us on (+61) 0499551080 or email us at sales@minleon.com.au to discuss your lighting project needs and start taking advantage of the creative possibilities

Specifications

Product Name	RGB Round Neon Pixel Tube
Bulb Count	60L/m
IC Count	20
Wire Colour	Black, Dark Green, White
Lens Type	Opaque Flat or Side
	OUTPUT
LED Type	SMD5050
LED Channels	3 - RGB
Protocol	8 bit, 256 dimming levels
LED to chip ratio	3 to 1
Chipset	WS2818 (4 wire) with redundancy
	CONTROL
Individually Addressable	Yes
Control System	NDB+, Pro, WEC (ArtNet, E1.31, DDP)
Max Distance before Power Injection	Approx 10m(24v)
Cuttable sections	63.5mm
	ELECTRICAL & SAFETY
Input Voltage	24 Volts DC
Current	0.4Amps/m
Power	9.6 Watts/m
Wire	4 x 18 AWG, 4C, UV Protected
Certifications	(C)UL Listed, IP66, CE
	PHYSICAL
Size	Diameter 25mm
Material	Silicone
Tube Style	Flat or Side
Connector type	Quick 1/2 turn twist lock
Operating Temperature	-20 Deg C to +50 Deg C
