Minleon RGB Pixel G50 Prism Triklit Lights

Minleon Decorative RGB Pixel G50 Prism Triklit Lights
Minleon Decorative RGB Pixel G50 Prism Triklit Lights are a high quality colourful bright 50mm 360 degree faceted ball allowing for amazing creative lighting possibilities. The Minleon Decorative RGB Pixel G50 Prism Triklit Lights are a faceted G50 poly-carbonate bulb with a nice prismatic light with 4 bright digital RGB bulbs inside and are available in  Black, Green or White string with custom spacing available.
These are perfect for use hanging in foyers, matrix walls, lighting canopies, light tunnels, chandeliers, signage and many other creative lighting applications


Product Name RGB Pixel G50 Prism Triklit
Bulb Count Custom
Bulb Spacing Custom
Wire Colour Black, Dark Green, White
Lens Type Faceted (prism)
LED Type SMD5050
LED Channels 3 - RGB or 4 - RGBWW
Protocol 16 bit, 65536 dimming levels
LED Quantity 2
Chipset RGB+ (3 wire)
Individually Addressable Yes
Control System NDB+, Pro, WEC (ArtNet, E1.31, DDP)
Max Lights before Power Injection

Approx 125 Lights (12vdc)  -  Approx 225 Lights (24vdc)

Max Distance before Power Injection Approx 40m(12v)  - Approx 70m (24v)

Input Voltage 12 or 24 Volts DC
Current 0.028 Amps (12vdc)
Power 0.336 Watts (12vdc)
Wire 2 x 22 AWG, 3C, UV Protected
Certifications (C)UL Listed, IP65, CE

Size 50mm Diameter
Weight Approx 40 grams
Material Polycarbonate
Bulb Style Faceted (Prism)
Connector type Quick 1/2 turn twist lock
Operating Temperature -20 Deg C to +50 Deg C

G50 Prism Triklit

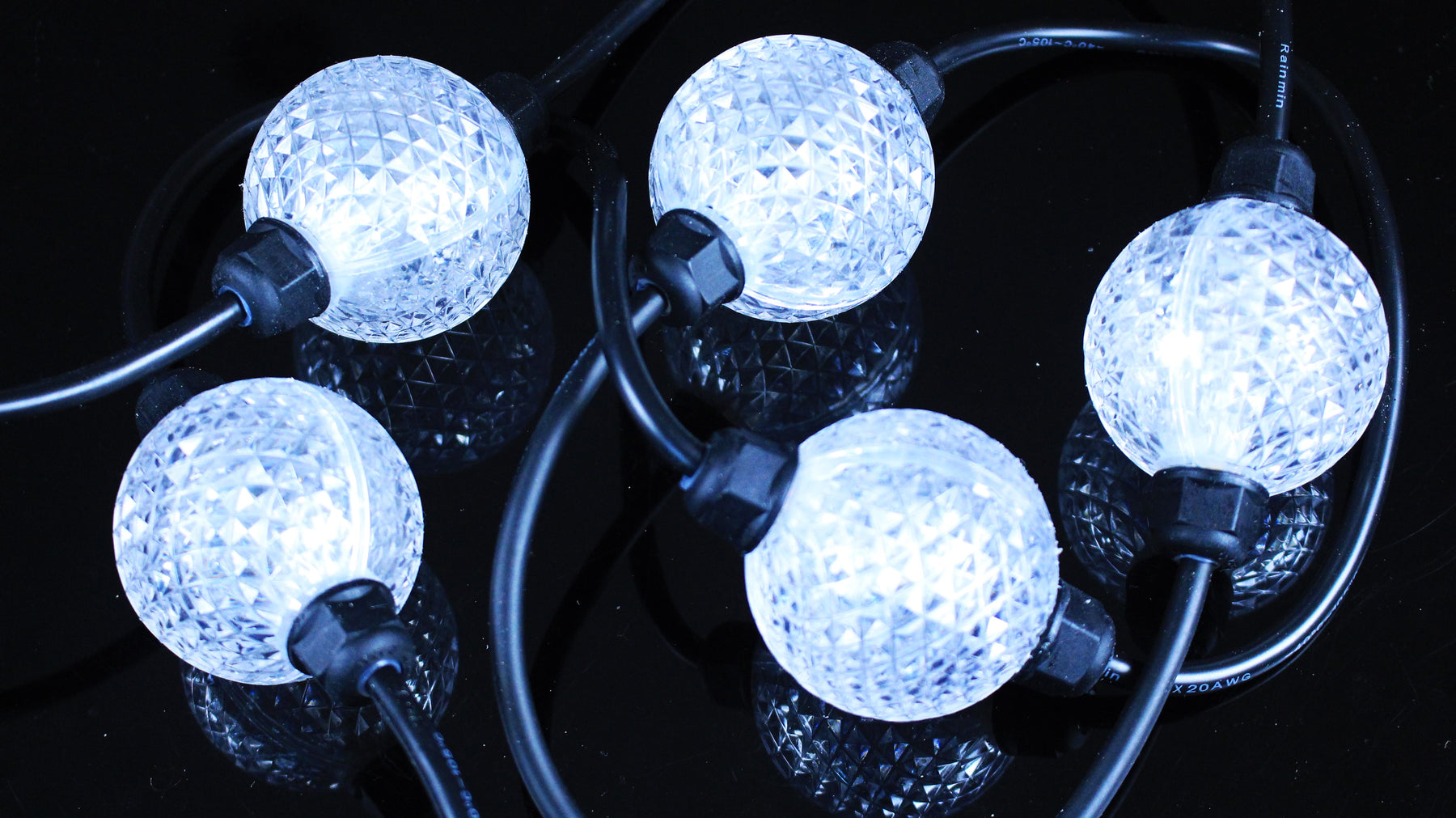

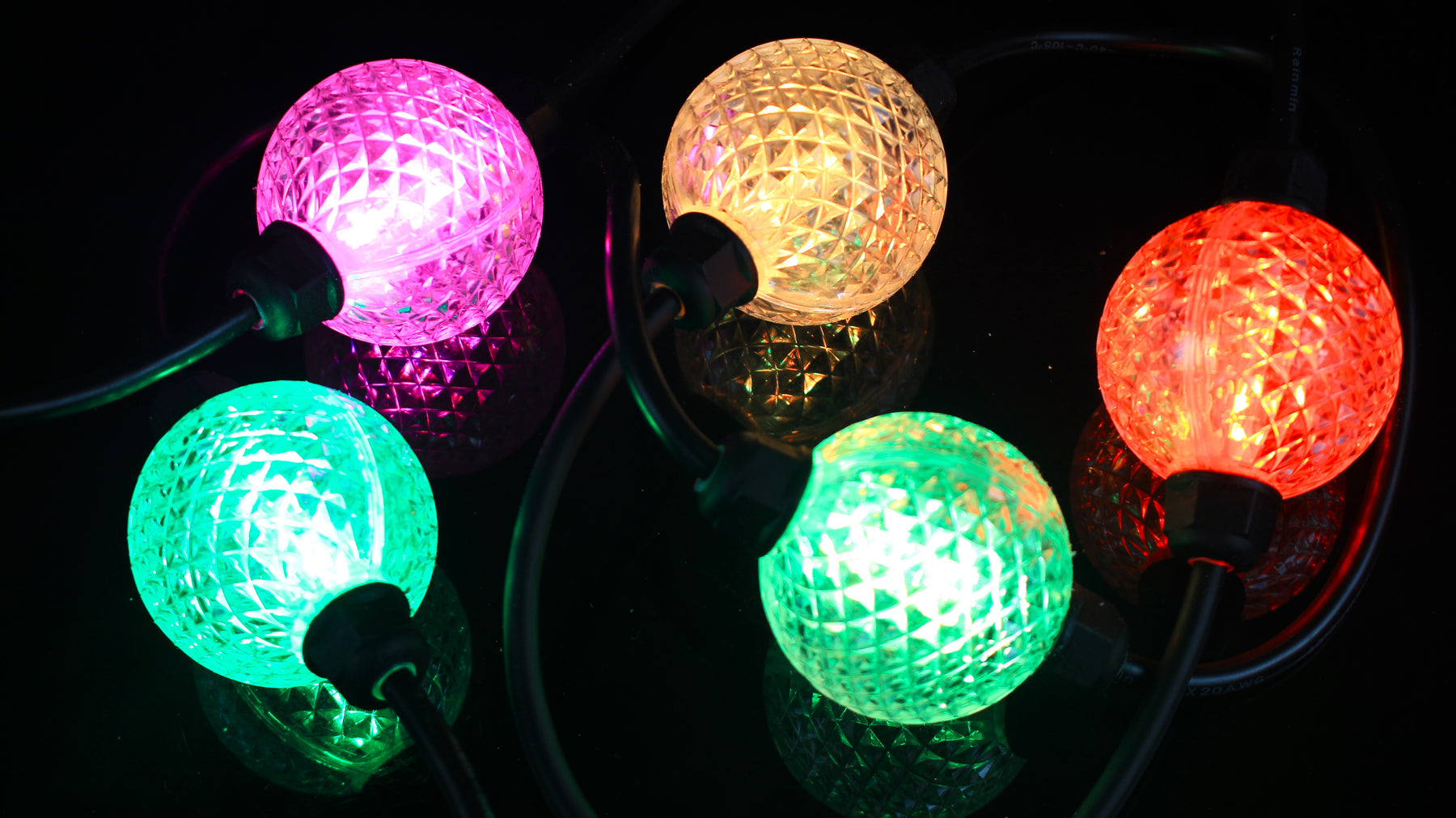

Minleon Decorative RGB Pixel G50 Prism Triklit Lights On
Minleon Decorative RGB Pixel G50 Prism Triklit Lights Off

Quick 1/2 Turn Weatherproof Connector

Minleon Lighting Advantages
  • 12VDC or 24VDC - Safe low DC voltage which is perfect for public spaces and commercial applications using quality Australian certified power supplies.
  • IP65 - Can be used outdoors or indoors, temporary or permanently.
  • UV Rated - High quality materials are used to withstand the harsh Australian sun for many years.
  • RGB LED - A Red, Green and Blue LED are combined in the same package allowing the creations of millions of colours.
  • 48 Bit Digital Processing - 16 Bit per colour allowing for millions of colour combinations.
  • 1KHZ Refresh Rate - High refresh rate allowing for broadcast quality recording without flicker effects.
  • Quick Connect Plug - Fast 1/2 turn weatherproof connector allowing for dramatically reduced installation and dismantle times.
  • Philips Lighting Partner - Minleon Group is part of the Signify Licensing Program (Philips Lighting) For RGB Lighting, so you can be assured that Minleon lighting is covered and legal to be sold into the Australian market and does not breach the intellectual property rights and patents of Signify (Philips)
  • Australian Registered Business - Deal with a trusted an Australian registered business that has been in this industry for over 7 years.
  • Knowledge & Experience - We know our products and we can help you make the best use of our lighting and control systems for maximum impact.
  • Plug and Play Options - We work with you to offer complete plug and play solutions, programmed with installation instructions based on your customized needs.
