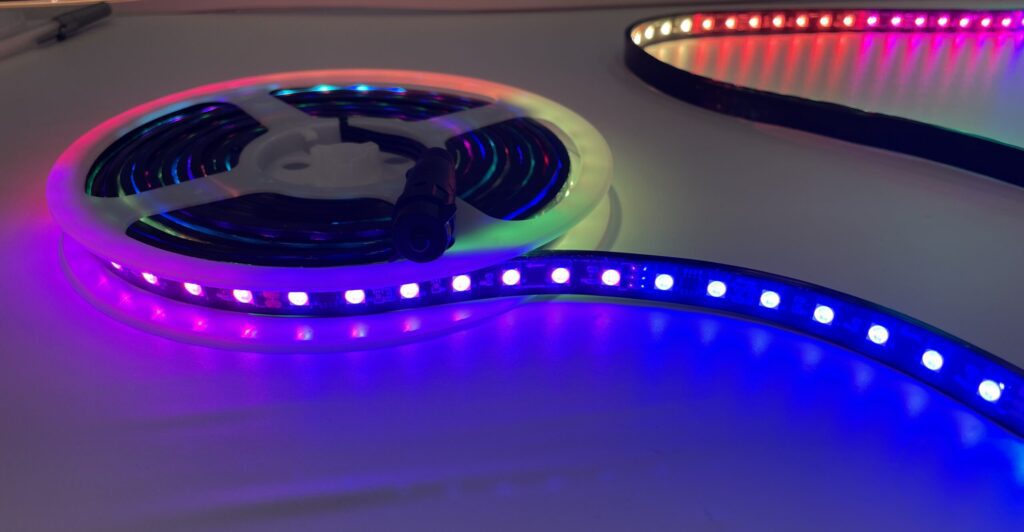

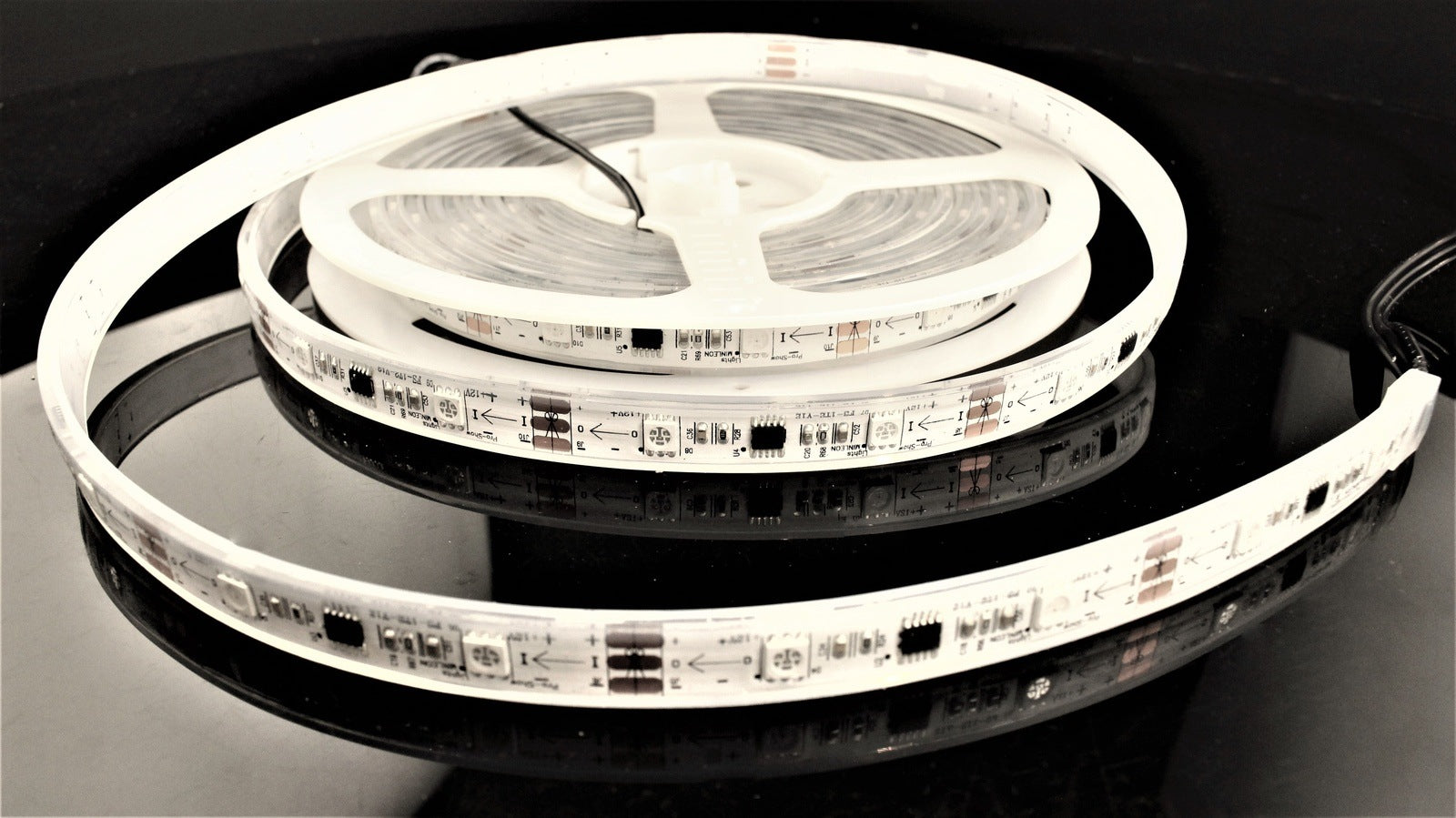

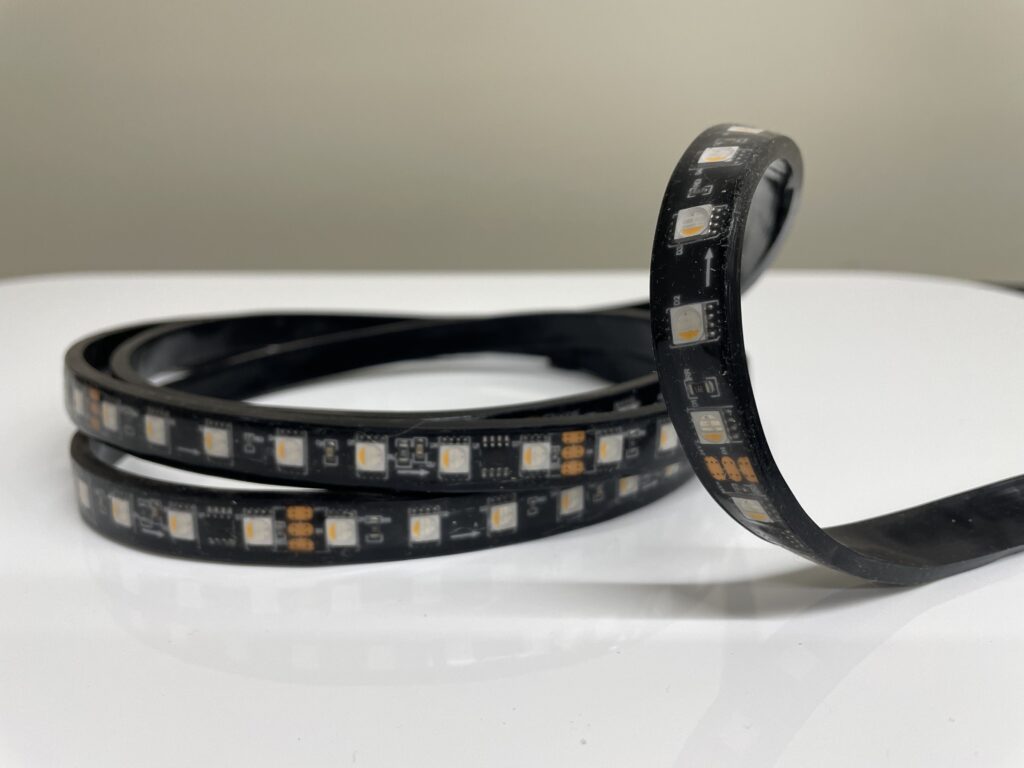

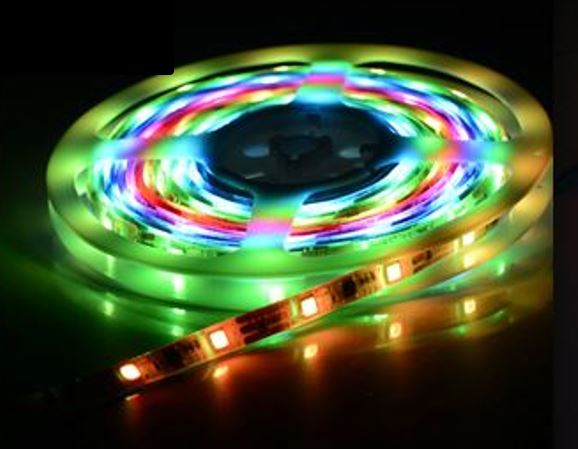

Minleon RGB Pixel Strip Light

Minleon Decorative RGB Pixel Strip Light is a high quality colourful bright flat light strip that allows for amazing creative lighting possibilities. There are 2 options with 12vdc strip light which has 14 controllable sections and 28 lights per meter or the 24vdc high efficiency/output option which has 10 controllable sections per meter with 70 LEDs per metre to allow for colourful and creative lighting possibilities.

These are perfect for lighting outlines, gutters/eves, signage, stairways, roof lighting and many other creative lighting applications

Specifications

Product Name	Pixel Strip Light
Roll Size	5 metres (12vdc) 10m (24vdc) - Custom
LED Type	SMD5050 RGB or RGBW
LED Count	12vdc RGB - 28 LEDs/meter - 14 sections/metre 24vdc RGBW - 70 LED/meter - 10 sections/metre (high output/efficiency)
Voltage	12vdc or 24vdc
Power	12vdc - 5 Watts per metre - 25 watts per roll 24vdc - 3.6 Watts per metre - 18 watts per roll (high output/efficiency)
Current	0.4amps per metre @ 12vdc - 2 amps per roll 0.15amps per metre @ 24vdc - 0.75 amps per roll
Chipset	UCS2903 (RGB 12vdc) UCS2904 (RGBW 24vdc)
Processing	48bit (16bit per colour)
Refresh Rate	1KHZ Broadcast Quality
Max Length	max length without power injection - 12vdc 5m - 24vdc 10m
IP Rating	IP67
Working Temp	-20 to +60 Degree Celsius
String Colour	Black, Dark Green or White
Lighting Controller	Minleon NDB, MC2, WEC controllers or any supporting controller

Digital Strip Light

Quick 1/2 Turn Weatherproof Connector

Minleon Lighting Advantages

12VDC - Safe low DC voltage which is perfect for public spaces and commercial applications using quality Australian certified power supplies.
IP67 - Can be used outdoors or indoors, temporary or permanently.
UV Rated - High quality materials are used to withstand the harsh Australian sun for many years.
RGB LED - A Red, Green and Blue LED are combined in the same package allowing the creations of millions of colours.
48 Bit Digital Processing - 16 Bit per colour allowing for millions of colour combinations.
1KHZ Refresh Rate - High refresh rate allowing for broadcast quality recording without flicker effects.
Quick Connect Plug - Fast 1/2 turn weatherproof connector allowing for dramatically reduced installation and dismantle times.
Philips Lighting Partner - Minleon Group is part of the Signify Licensing Program (Philips Lighting) For RGB Lighting, so you can be assured that Minleon lighting is covered and legal to be sold into the Australian market and does not breach the intellectual property rights and patents of Signify (Philips)
Australian Registered Business - Deal with a trusted an Australian registered business that has been in this industry for over 7 years.
Knowledge & Experience - We know our products and we can help you make the best use of our lighting and control systems for maximum impact.
Plug and Play Options - We work with you to offer complete plug and play solutions, programmed with installation instructions based on your customized needs.

NOTE: Due to the custom nature of our lighting products then most products are order based. You will find stocked products below when available.

Minleon RGB Pixel Strip Light - $POA
