Minleon RGB Pixel Light Bars

Minleon RGB specs drawing



The Minleon Light Bar is a bright digital RGB programmable colour changing light that is designed to be surface mounted to create colourful linear lighting effects for any area and comes in two sizes

The Light Bar perfect for facades/building, signage, decorative, internal lighting and many other applications and is made of high-quality materials allowing for a long trouble-free life.

 Specifications

Name

Small Light Bar

Large Light Bar

Part Number

RGB+BARS-24V

RGB+BARL-24V

Dimension

1000(L)x24(W)x47(H)mm

1000(L)x33(W)x55(H)mm

LED Quantity

48 LEDs

48 LEDs

IC Count

8

8

LED Type

SMD 5050

SMD 5050

Colour

R-G-B

R-G-B

IC Chip

UCS 8903 48Bit 16bit/colour - 1KHZ Refresh Rate

Material

Aluminium/Polycarbonate – UV rated

Voltage

24V DC

24V DC

Power

4.8W per meter

4.8W per meter

Current

200mA per meter

200mA per meter

Wire Type

3x 18 AWG

3x 18 AWG

Wire Colour

White, Black

White, Black

Plug Type

Connectable with ½ turn quick connect plug

Connectable with ½ turn quick connect plug

Working Temp

-20  to  +60 Deg C

-20  to  +60 Deg C

Waterproof Level

IP67, outdoor use

IP67, outdoor use

Warranty

24 Months

24 Months



 Minleon 24vdc RGB Light Bars

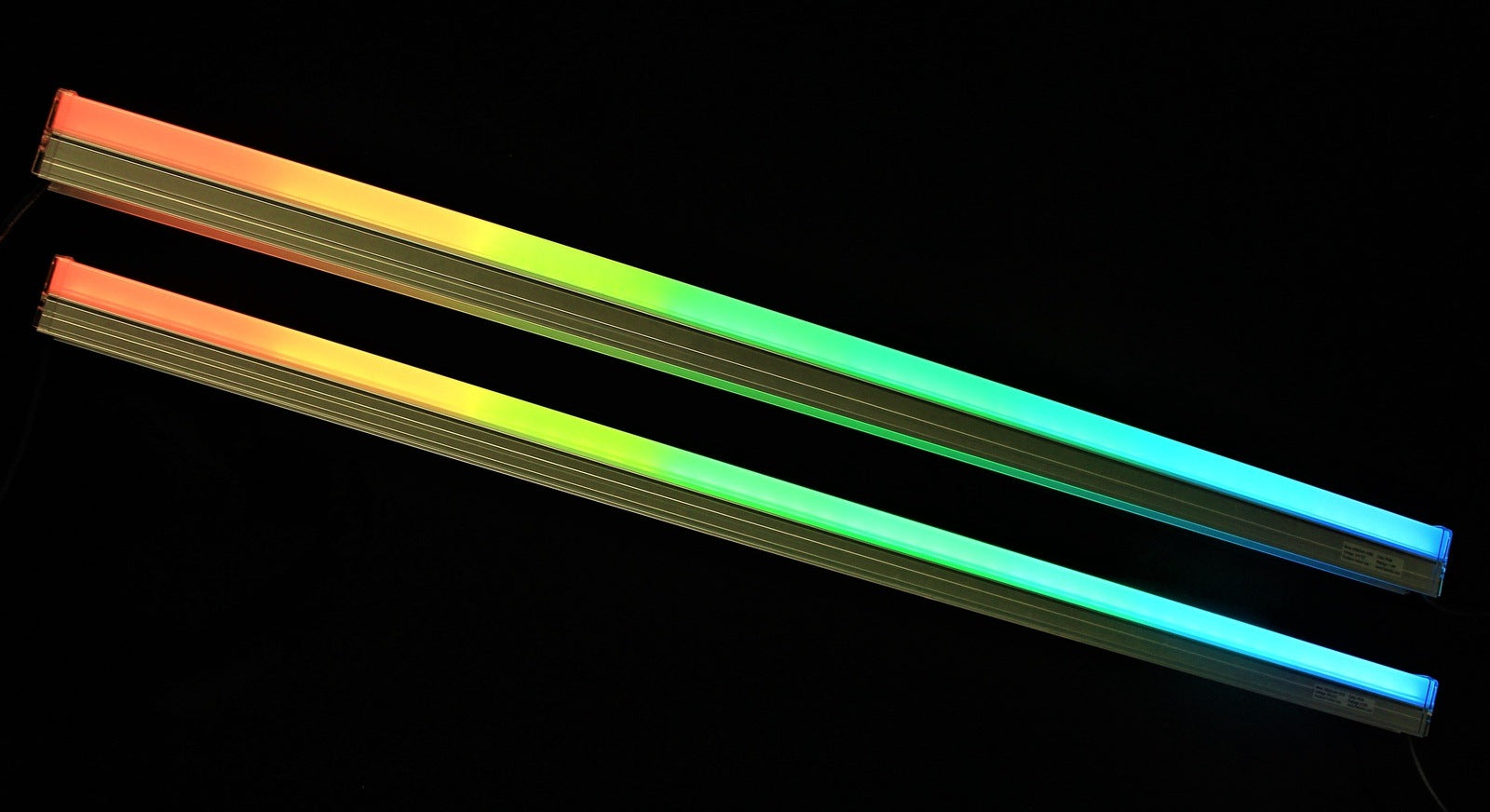

Minleon RGB Light Bar large and small
Quick 1/2 Turn Weatherproof Connector

Minleon Lighting Advantages
  • 24VDC - Safe low DC voltage which is perfect for public spaces and commercial applications using quality Australian certified power supplies.
  • IP67 - Can be used outdoors or indoors, temporary or permanently.
  • UV Rated - High quality materials are used to withstand the harsh Australian sun for many years.
  • RGB LED - A Red, Green and Blue LED are combined in the same package allowing the creations of millions of colours.
  • 48 Bit Digital Processing - 16 Bit per colour allowing for millions of colour combinations.
  • 1KHZ Refresh Rate - High refresh rate allowing for broadcast quality recording without flicker effects.
  • Quick Connect Plug - Fast 1/2 turn weatherproof connector allowing for dramatically reduced installation and dismantle times.
  • Philips Lighting Partner - Minleon Group is part of the Signify Licensing Program (Philips Lighting) For RGB Lighting, so you can be assured that Minleon lighting is covered and legal to be sold into the Australian market and does not breach the intellectual property rights and patents of Signify (Philips)
  • Australian Registered Business - Deal with a trusted an Australian registered business that has been in this industry for over 7 years.
  • Knowledge & Experience - We know our products and we can help you make the best use of our lighting and control systems for maximum impact.
  • Plug and Play Options - We work with you to offer complete plug and play solutions, programmed with installation instructions based on your customized needs.
Minleon Lights

NOTE: Due to the custom nature of our lighting products then most products are order based. You will find stocked products below when available.
