Minleon RGB Pixel Splash Light

Minleon RGB Pixel Splash Light

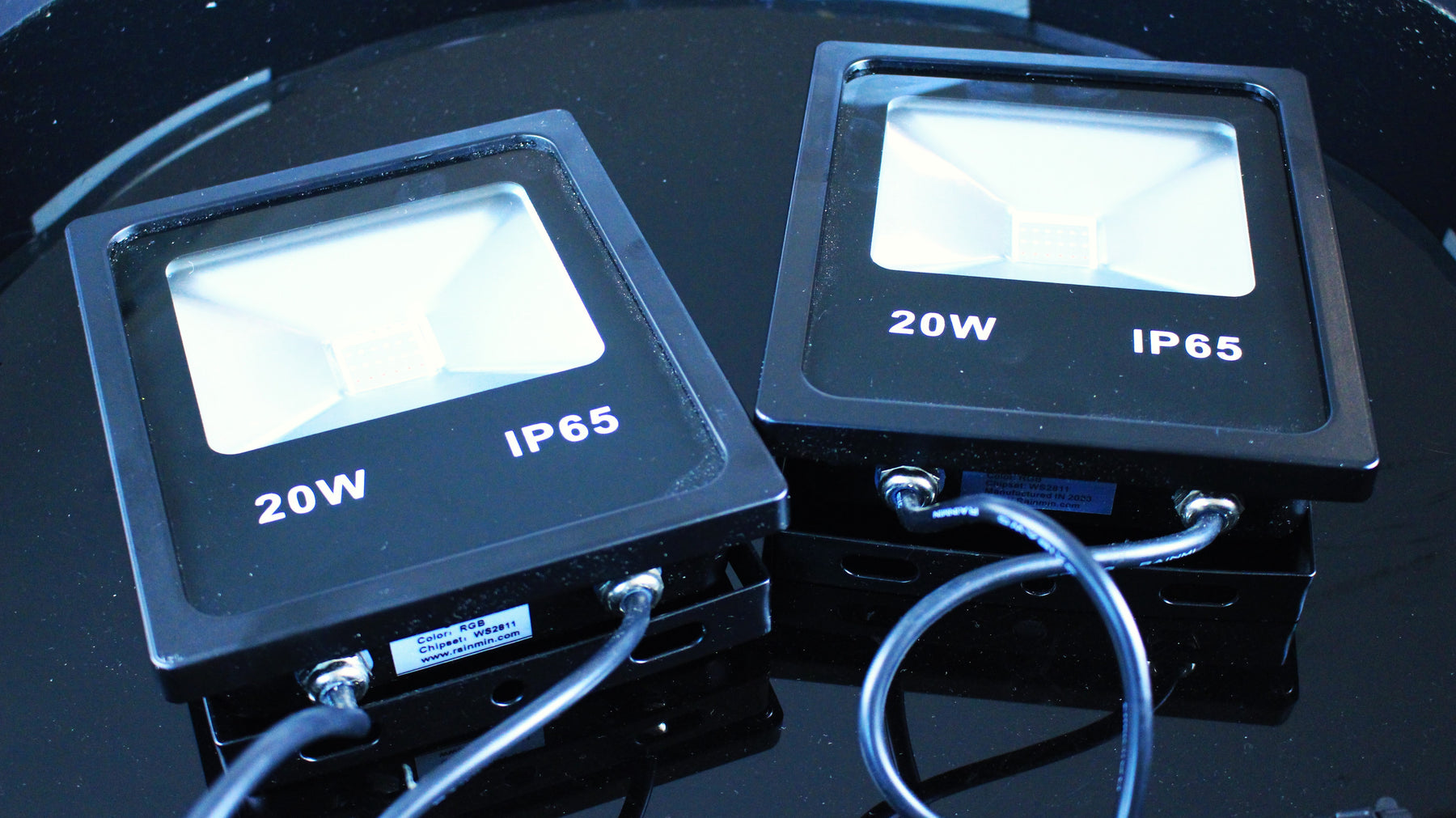

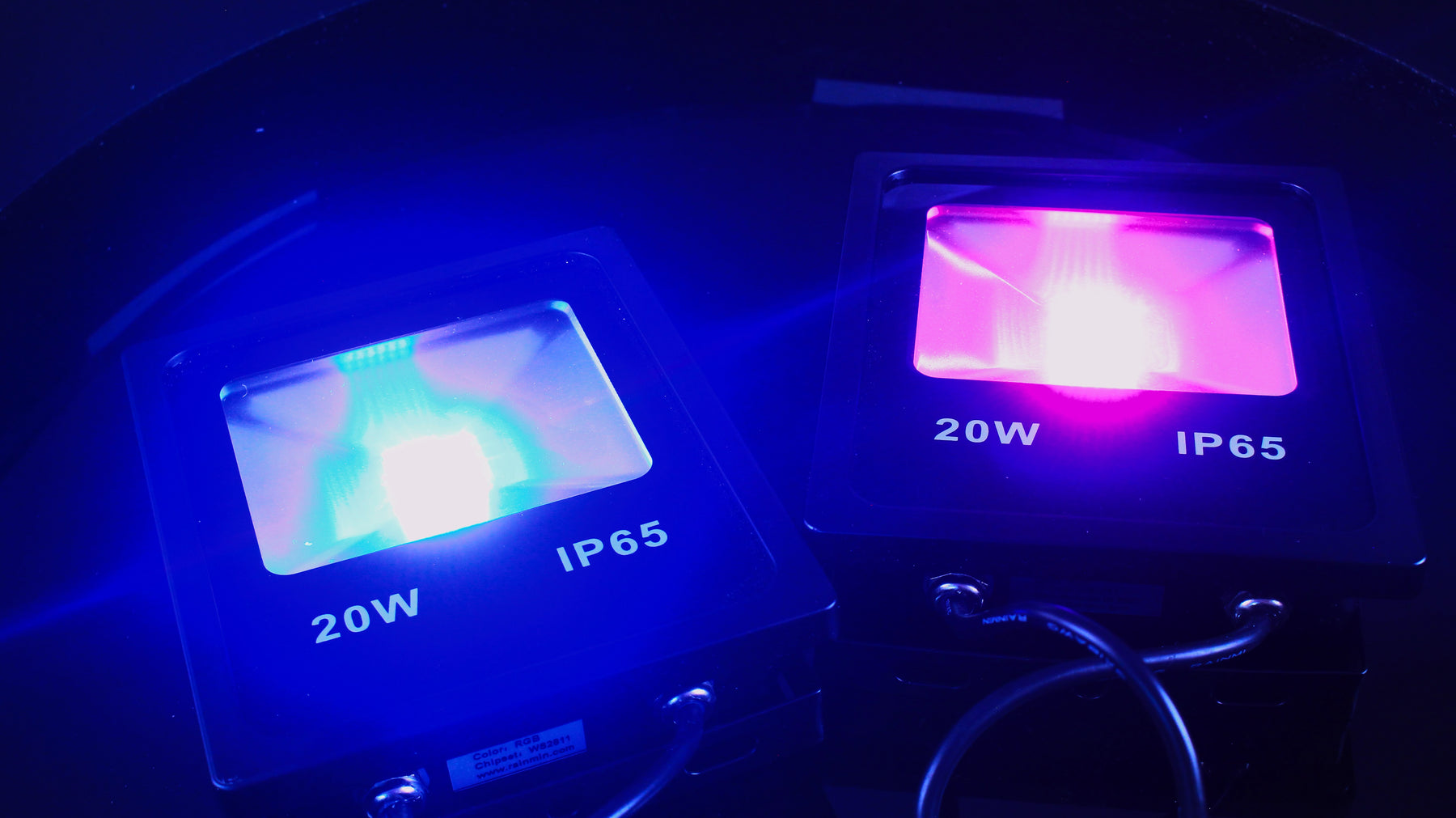

Minleon Decorative RGB Pixel Splash Light are a high quality colourful bright mini flood light that can be connected together and with other Minleon lights to create colourful scenes. The Minleon Splash lights are a 20 watt outdoor and indoor flood light that can fill areas with colourful light.
These are perfect for gardens, wall lighting, highlighting objects and many other creative lighting applications


Product Name RGB Pixel Splash Light
Wire Colour Black
Beam Angle 120 Degrees
LED Channels 3 - RGB
Protocol 8 bit, 256 dimming levels
LED Quantity 1
Chipset WS2812 (3 wire)
Individually Addressable Yes
Control System NDB+, Pro, WEC (ArtNet, E1.31, DDP)
Max Lights before Power Injection

Approx 3 to 4

Max Distance before Power Injection Approx 15m

Input Voltage 24 Volts DC
Current 0.83 Amps (24vdc)
Power 20 Watts (24vdc)
Wire 3 x 18 AWG, 3C, UV Protected
Certifications (C)UL Listed, IP65, CE

Size 200 x 150 x 40mm
Weight Approx 300 grams
Material Aluminium/powder coated/glass cover
Bulb Style Includes ground stake
Connector type Quick 1/2 turn twist lock
Operating Temperature -20 Deg C to +50 Deg C

RGB Pixel Splash Light

Minleon RGB Pixel Splash Light offMinleon RGB Pixel Splash Light
Quick 1/2 Turn Weatherproof Connector

Minleon Lighting Advantages
  • 24VDC - Safe low DC voltage which is perfect for public spaces and commercial applications using quality Australian certified power supplies.
  • IP65 - Can be used outdoors or indoors, temporary or permanently.
  • UV Rated - High quality materials are used to withstand the harsh Australian sun for many years.
  • RGB LED - A Red, Green and Blue LED are combined in the same package allowing the creations of millions of colours.
  • 24 Bit Digital Processing - 8 Bit per colour allowing for millions of colour combinations.
  • 1KHZ Refresh Rate - High refresh rate allowing for broadcast quality recording without flicker effects.
  • Quick Connect Plug - Fast 1/2 turn weatherproof connector allowing for dramatically reduced installation and dismantle times.
  • Philips Lighting Partner - Minleon Group is part of the Signify Licensing Program (Philips Lighting) For RGB Lighting, so you can be assured that Minleon lighting is covered and legal to be sold into the Australian market and does not breach the intellectual property rights and patents of Signify (Philips)
  • Australian Registered Business - Deal with a trusted an Australian registered business that has been in this industry for over 7 years.
  • Knowledge & Experience - We know our products and we can help you make the best use of our lighting and control systems for maximum impact.
  • Plug and Play Options - We work with you to offer complete plug and play solutions, programmed with installation instructions based on your customized needs.
